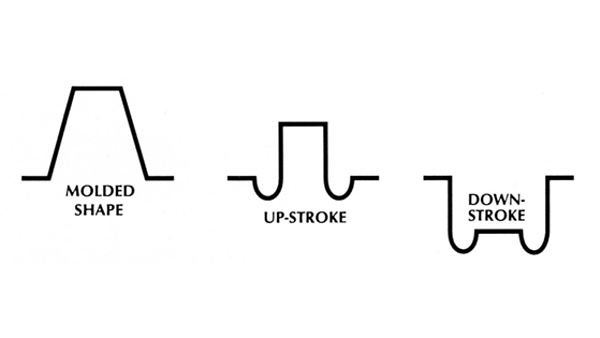

Double Coated Rolling Diaphragms
Double Coated diaphragms provide performance under pressure when pressure may be applied on either side of the seal.
Double Coated diaphragms provide performance under pressure when pressure may be applied on either side of the seal.
|

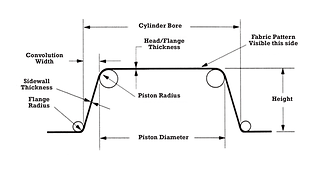

| Cylinder Bore Range | 0.25-0.99 | 1.00-2.50 | 2.51-4.00 | 4.01-8.00 | over 8.00 |
Sidewall Thickness | 0.013/0.017 (0.330/0.432) | 0.014/0.020 (0.356/0.508) | 0.020/0.028 (0.508/0.711) | 0.030/0.040 (0.762/1.016) | 0.035/0.055 (0.889/1.397) |
Head/Flange Thickness | 0.015/0.025 (0.381/0.635) | 0.015/0.025 (0.381/0.635) | 0.025/0.035 (0.635/0.889) | 0.030/0.040 (0.762/1.016) | 0.035/0.055 (0.889/1.397) |
Piston Radius | 0.094 (2.388) | 0.125 (3.175) | 0.156 (3.962) | 0.250 (6.350) | 0.310 (7.874) |
Flange Radius | 0.031 (0.787) | 0.062 (1.575) | 0.094 (2.388) | 0.125 (3.175) | 0.250 (6.350) |
Convolution Width | 0.085 (2.159) | 0.094 (2.388) | 0.156 (3.962) | 0.205 (5.207) | 0.250 (6.350) |
